NC.40ZB-1200 CNC busbar bending machine

The NC.40ZB-1200 CNC busbar bender uses a 7.5kW servo motor to provide the bending force, offering superior bending angle accuracy and force compared to hydraulically driven systems.

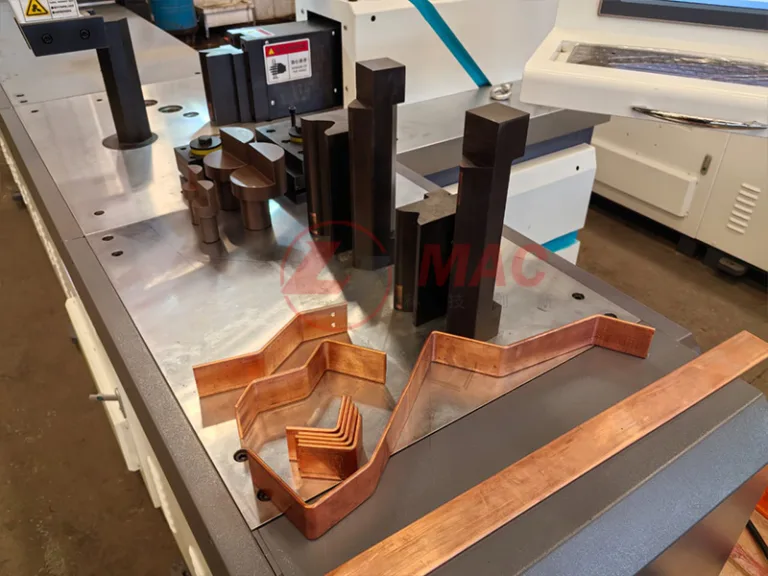

This busbar bender features horizontal bending, vertical bending, and twisting capabilities, and can process copper busbars up to 15mm thickness and 160mm width. Horizontal bending can process busbars up to 12mm x 120mm in size.

The NC.40ZB-1200 is programmed and operated via a modern, easy-to-use, 2-axis control touchscreen. Bending angles can be programmed and adjusted after the initial bend. The stroke setting can be adjusted in the program at any time in +/- 0.1° increments to offset material-related variances.  The machine can share data with CNC busbar punching and cutting machine via Wi-Fi, creating an automated busbar punching, cutting, and bending production line.

The NC.40ZB-1200 busbar bender’s slow, automatic, and straightening modes can all be operated via a foot switch or manual control line. Optional automatic measurement and rebend functions ensure perfect bends regardless of material properties. For each bend, the NC.40ZB-1200 copper busbar bender performs an initial bend, measures, and then rebends each busbar, ensuring maximum process reliability and precision. The control system individually calculates the required stroke and springback compensation for optimal accuracy.

ملحوظة: القوالب المذكورة أعلاه هي قوالب قياسية. إذا كنتم بحاجة إلى قوالب بمواصفات مختلفة أو لأشكال قضبان توصيل خاصة، فيمكن لفريقنا الفني تخصيصها مجانًا. للتواصل مع مهندسنا الفني، يُرجى مراسلتنا عبر البريد الإلكتروني. lisa@busbarmac.com.
